PL-259 UHF Lightning Surge Protector - Female to Female Lightning Arrestor for CB Ham Radio Antennas | Weatherproof Bulkhead Connector for Outdoor Antenna Protection & Lightning Safety
$8.24
$14.99
Safe 45%
PL-259 UHF Lightning Surge Protector - Female to Female Lightning Arrestor for CB Ham Radio Antennas | Weatherproof Bulkhead Connector for Outdoor Antenna Protection & Lightning Safety PL-259 UHF Lightning Surge Protector - Female to Female Lightning Arrestor for CB Ham Radio Antennas | Weatherproof Bulkhead Connector for Outdoor Antenna Protection & Lightning Safety PL-259 UHF Lightning Surge Protector - Female to Female Lightning Arrestor for CB Ham Radio Antennas | Weatherproof Bulkhead Connector for Outdoor Antenna Protection & Lightning Safety PL-259 UHF Lightning Surge Protector - Female to Female Lightning Arrestor for CB Ham Radio Antennas | Weatherproof Bulkhead Connector for Outdoor Antenna Protection & Lightning Safety PL-259 UHF Lightning Surge Protector - Female to Female Lightning Arrestor for CB Ham Radio Antennas | Weatherproof Bulkhead Connector for Outdoor Antenna Protection & Lightning Safety PL-259 UHF Lightning Surge Protector - Female to Female Lightning Arrestor for CB Ham Radio Antennas | Weatherproof Bulkhead Connector for Outdoor Antenna Protection & Lightning Safety PL-259 UHF Lightning Surge Protector - Female to Female Lightning Arrestor for CB Ham Radio Antennas | Weatherproof Bulkhead Connector for Outdoor Antenna Protection & Lightning Safety
PL-259 UHF Lightning Surge Protector - Female to Female Lightning Arrestor for CB Ham Radio Antennas | Weatherproof Bulkhead Connector for Outdoor Antenna Protection & Lightning Safety
PL-259 UHF Lightning Surge Protector - Female to Female Lightning Arrestor for CB Ham Radio Antennas | Weatherproof Bulkhead Connector for Outdoor Antenna Protection & Lightning Safety
PL-259 UHF Lightning Surge Protector - Female to Female Lightning Arrestor for CB Ham Radio Antennas | Weatherproof Bulkhead Connector for Outdoor Antenna Protection & Lightning Safety
PL-259 UHF Lightning Surge Protector - Female to Female Lightning Arrestor for CB Ham Radio Antennas | Weatherproof Bulkhead Connector for Outdoor Antenna Protection & Lightning Safety
PL-259 UHF Lightning Surge Protector - Female to Female Lightning Arrestor for CB Ham Radio Antennas | Weatherproof Bulkhead Connector for Outdoor Antenna Protection & Lightning Safety
PL-259 UHF Lightning Surge Protector - Female to Female Lightning Arrestor for CB Ham Radio Antennas | Weatherproof Bulkhead Connector for Outdoor Antenna Protection & Lightning Safety
PL-259 UHF Lightning Surge Protector - Female to Female Lightning Arrestor for CB Ham Radio Antennas | Weatherproof Bulkhead Connector for Outdoor Antenna Protection & Lightning Safety
PL-259 UHF Lightning Surge Protector - Female to Female Lightning Arrestor for CB Ham Radio Antennas | Weatherproof Bulkhead Connector for Outdoor Antenna Protection & Lightning Safety
$8.24
$14.99
45% Off
Quantity:
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
16 people viewing this product right now!
SKU: 15421168
Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay
shop
Description

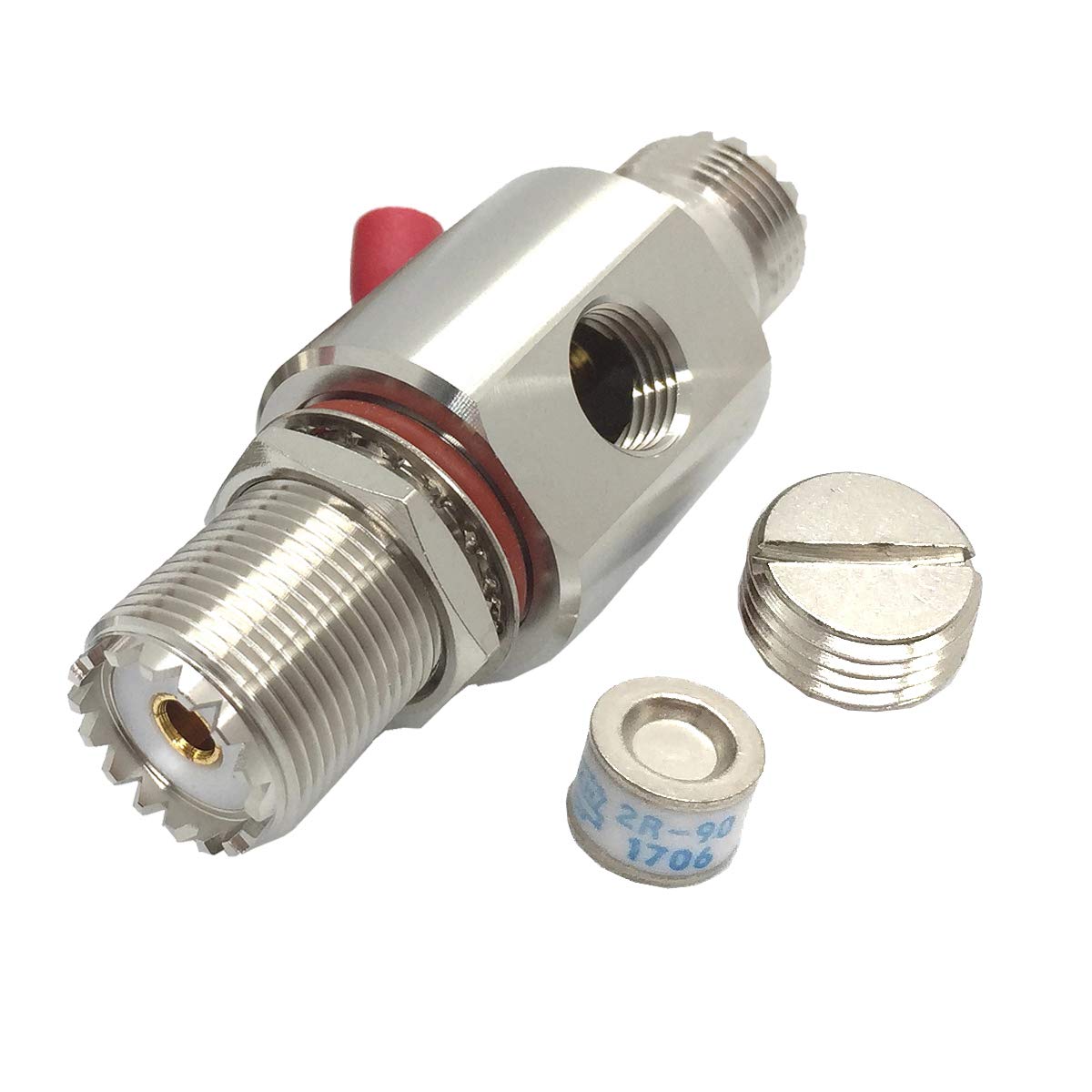

It is a coaxial UHF Lightning Protector that operates over the frequency range of DC-1 GHz. It uses a 90V gas discharge tube to shunt electrical surges and transients to ground, protecting sensitive communications equipment from these events. It is a great UHF lightning protection solution for Ham radio and other lower frequency Antenna. This model features PL259(UHF female) TO SO239 Socket(UHF Female) for mounting through an enclosure wall or the arrestor can be used inline. SO239 259 arrester will pass DC,so SO-239 surge protector is suitable for applications where DC is carried through the coax cable. Both UHF connector ports of this unit are equally protected -- it can be installed in either orientation. A ground lug and terminal on the housing provide superior grounding. Specification: Frequency Range: DC-1GHz Discharge Voltage: DC90V Impedance: 50 ohms VSWR:1.2 Insertion Loss: <0.1 dB Max Power: 200W Max surge voltage let through:200 mV Throughput Energy: 5 nJ Max Current Load: 10A RoHS: Yes Packing : UHF lightning arrestor female to female Bulkhead
More
Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

1.UHF Lightning Arrester,PL259(UHF female) TO SO239 Socket( UHF Female) ,PL-259 Lightning surge protector for Coaxial cable. With ground screw connection for easy install

2.High quality construction,reliable Wide-Band Performance from DC-1GHz, insertion loss 0.1dB and VSWR 1.2 ,Replaceable 90V Gas Tube Element with High Surge Power CapabilityHigh Surge Power Capability

3. Run a piece of heavy gauge copper wire (8 or 10 gauge) from the grounding screw on the side of the arrestor to a 3 foot minimum length grounding rod driven into the ground

4.A great PL259 arrestor to protect your life, protectors offer HF/VHF/UHF other frequency equipment with extremely low loss. They boast an insertion loss of less than

5.UHF arresters should be installed as close as possible to the equipment to be protected, often at the point where the coax cable enters the building. They can also be installed near the antenna for additional protection

Reviews
*****
Verified Buyer
5
The terminal lug was pretty weak so I used a brass ground clamp (the type you typically attach to a water pipe) clamped right around the body of this device and then a #6 bare copper wire bonded directly to an 8’ ground rod. It’s a much more secure connection to ground that the wimpy crimp-on wire connector they provide.
