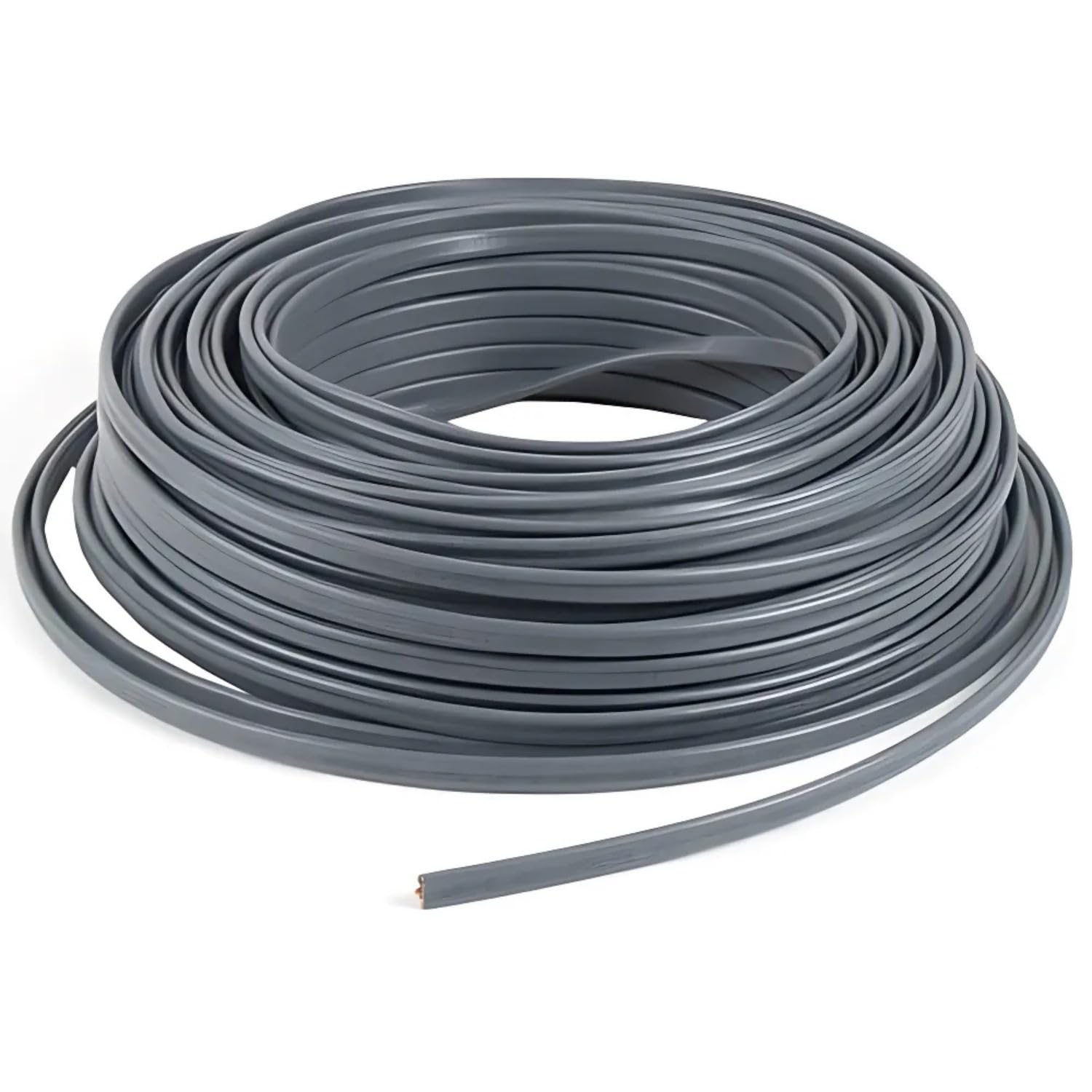

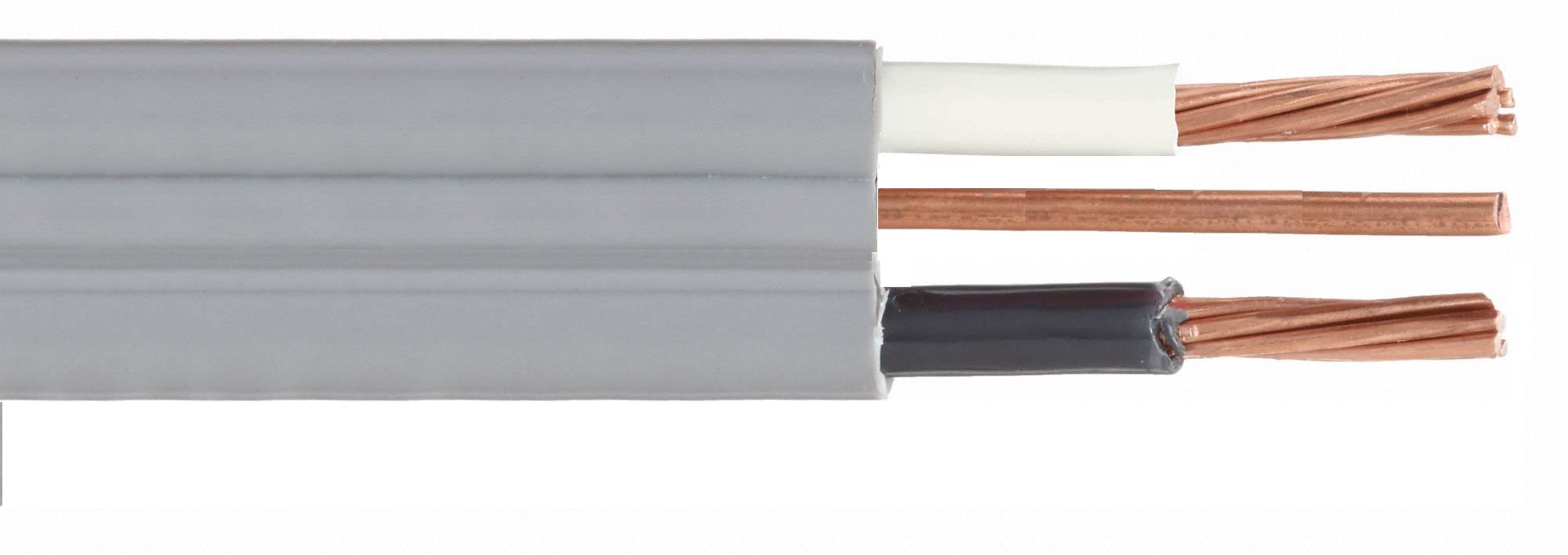

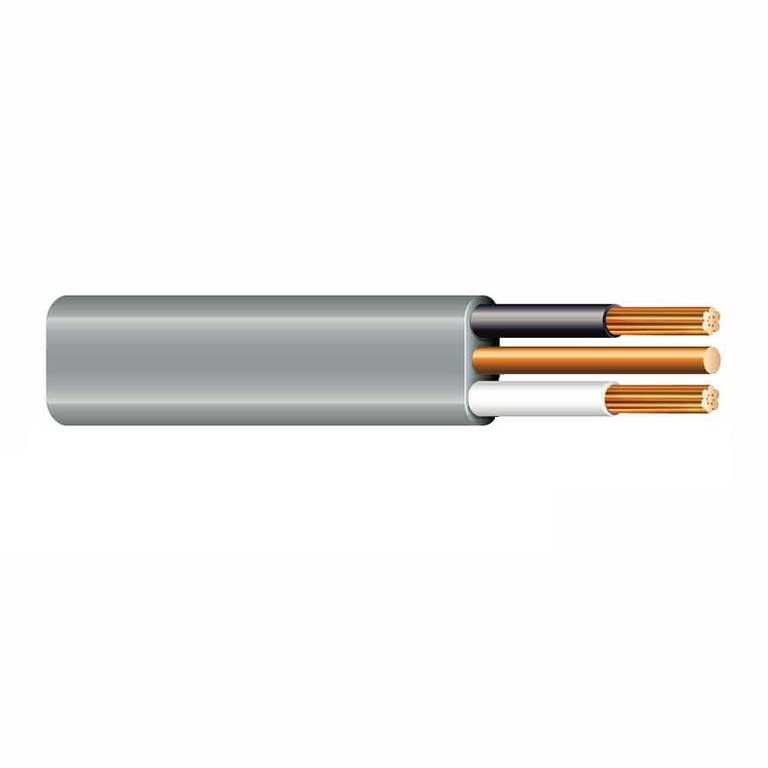

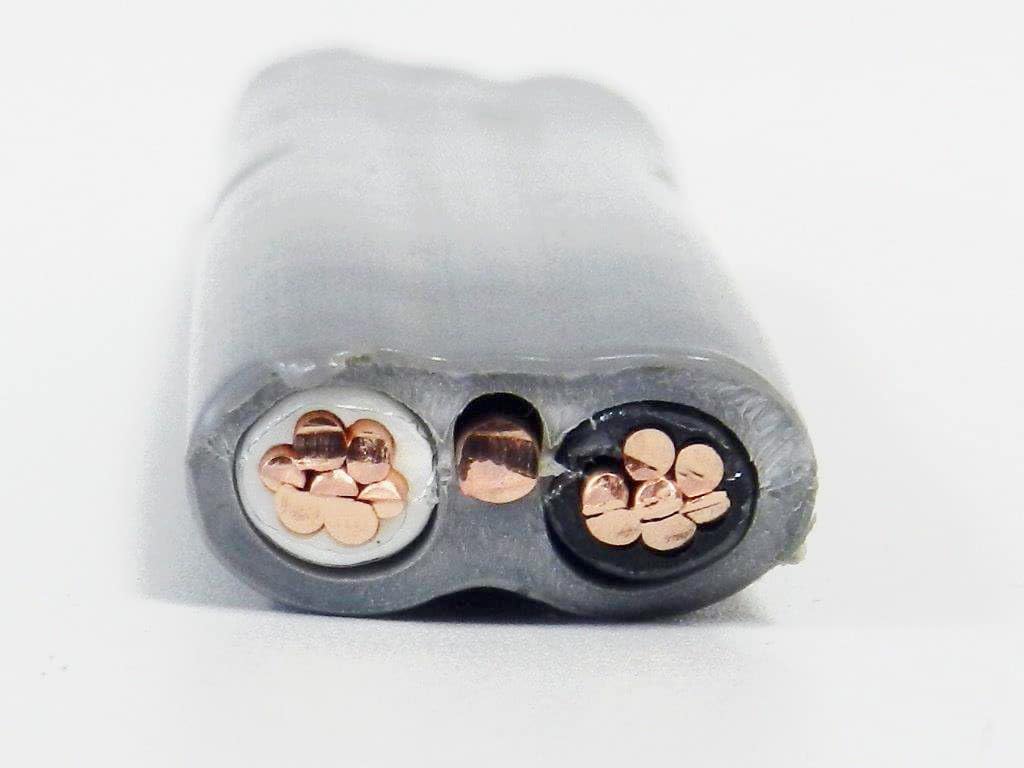

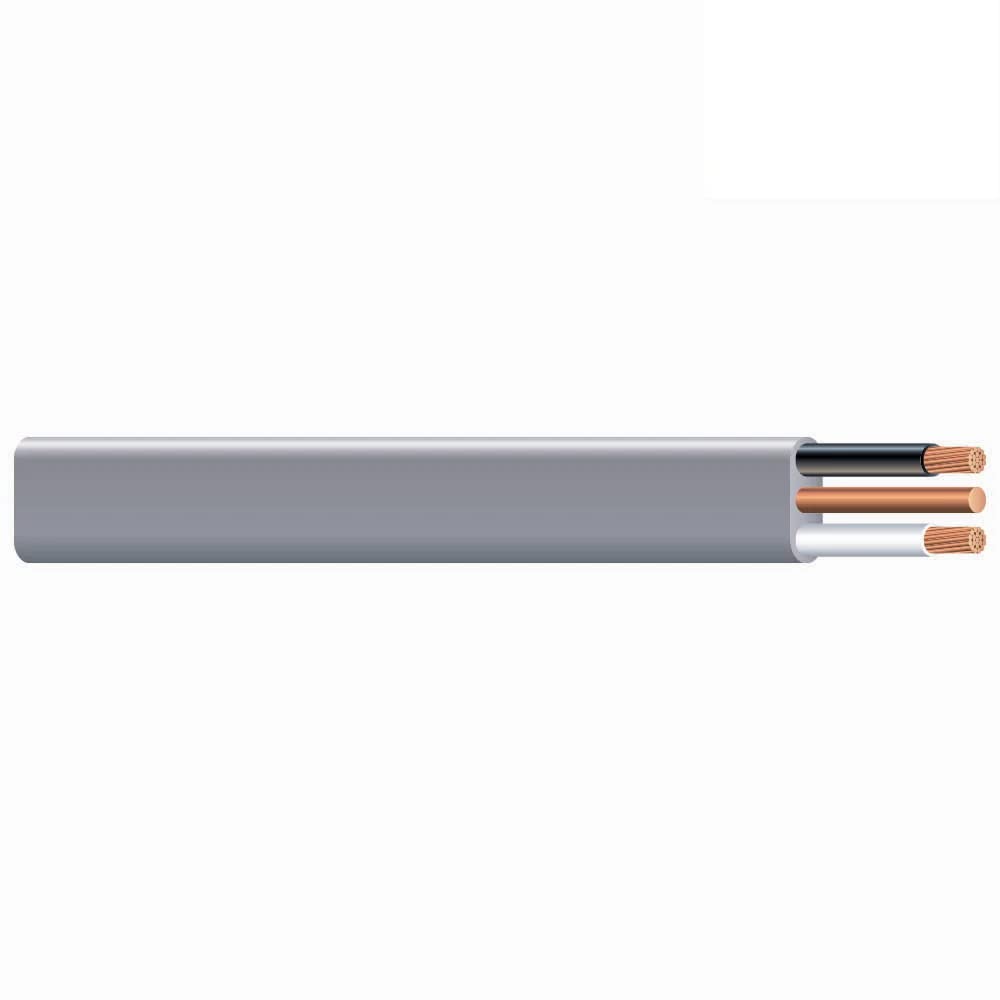

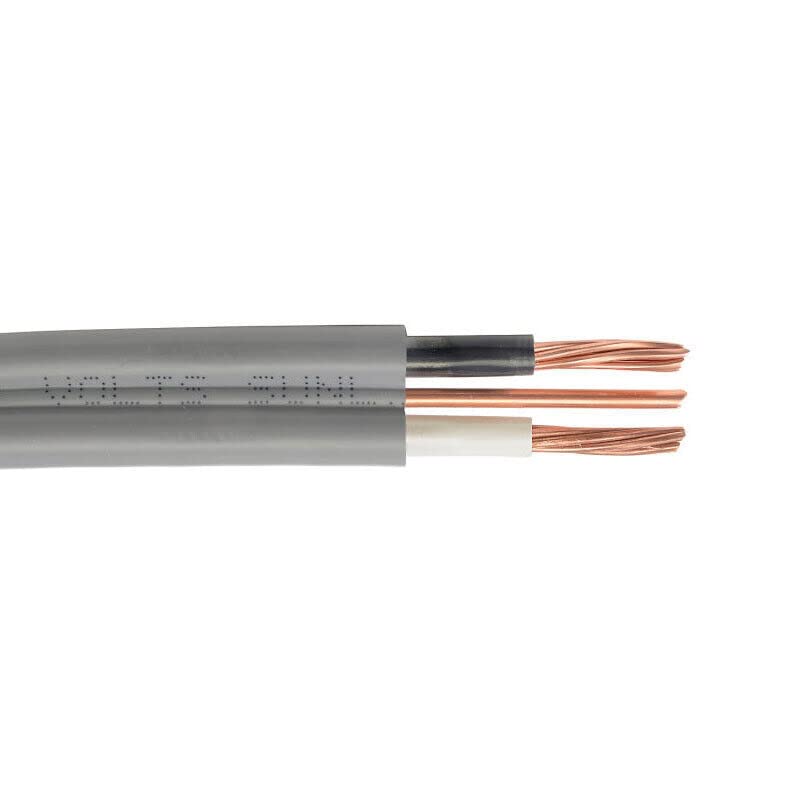

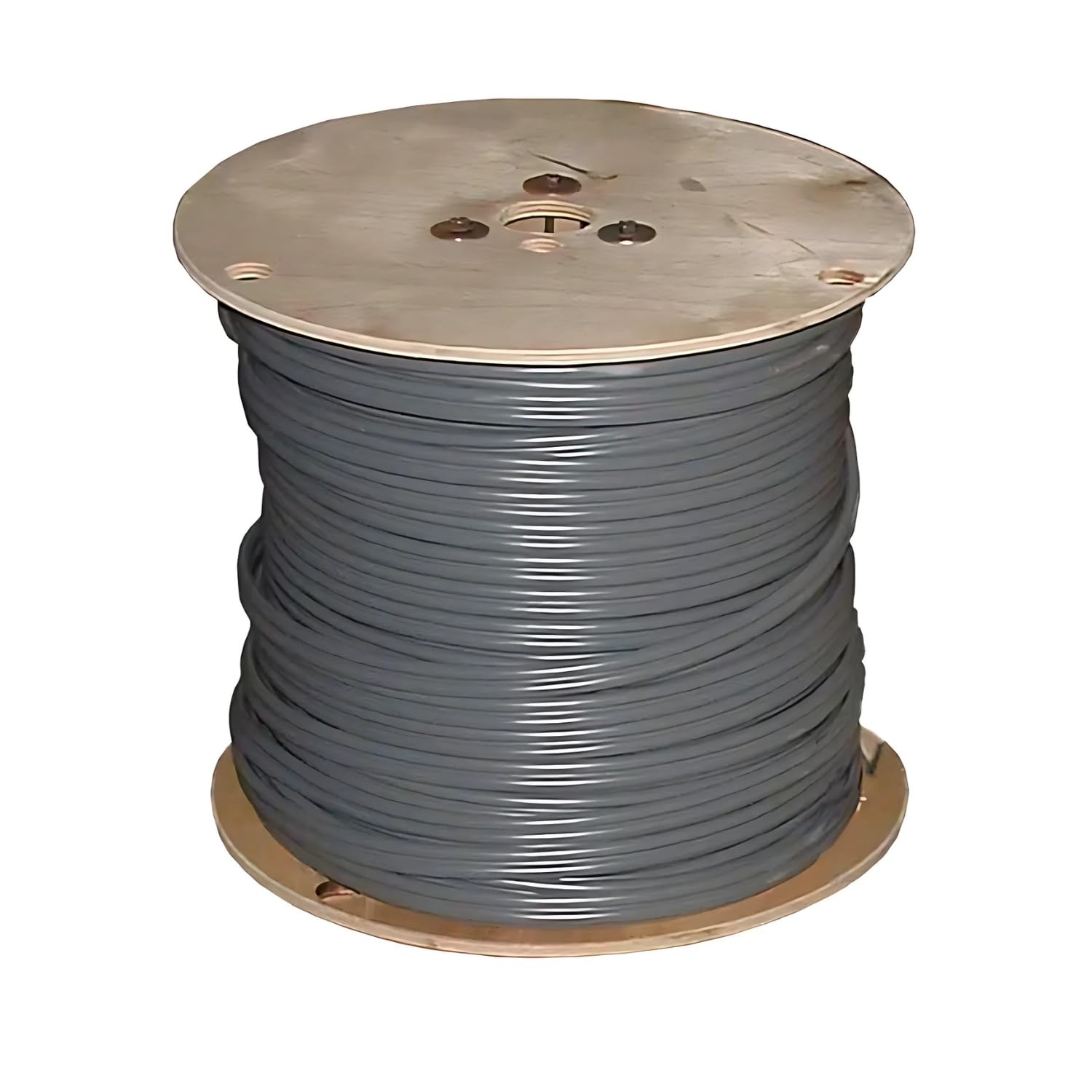

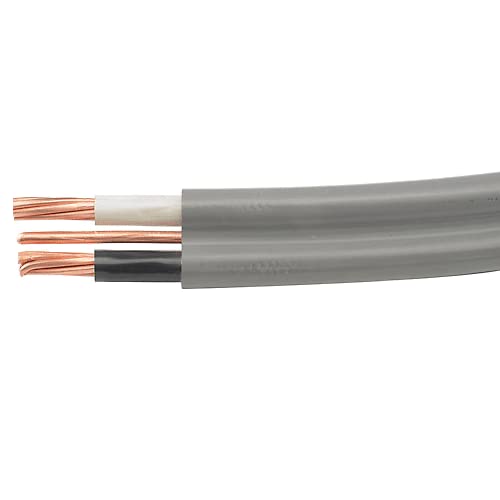

Nassau 6/2 UF (Underground Feeder - Direct Earth Burial) Cable 600V Applications An underground feeder cable's prime purpose is to bring the power from the residential, commercial, and industrial buildings to outdoor constructions, which include pumps and lighting constructions. The electrical cable is suitable for direct burial, as well as direct exposure to the sunlight. It is permitted for use as feeder or branch circuit cable if provided with overcurrent protection. Copper Underground Feeder Cable UF-B has a rating of 600 volts. Images are for reference only See Product Specifications Please order carefully no returns are accepted. Conductor UF-B wire has solid or stranded Type THHN/THWN that are laid parallel with an uninsulated grounding conductor. The conductors are made of stranded annealed bare copper. Insulation The cable is insulated with a PVC jacket with a nylon covering. It is resistant to moisture, grease, corrosion, sunlight, and chemicals. Allowable Ampacity Allowable Ampacity for 6/2 Underground Feeder Cable UF-B Copper 600V (Direct Burial): 55 Product Specifications Size AWG: 6 Weight per 1000 ft: 303 lbs Outside Diameter: 770X338 Conductors: 2 Number of Strands: 7 Jacket: PVC Insulation Jacket Thickness: 35 mils Jacket Thickness: 45 mils Ground Size: 10 Volts: 600 6/2 UF-B 6/3 UF-B 8/2 UF-B 10/2 UF-B Solid 12/3 UF-B Solid 14/2 UF-B Solid Buying Options Buying Options Buying Options Buying Options Buying Options Buying Options Customer Reviews 4.8 out of 5 stars 14 5.0 out of 5 stars 5 5.0 out of 5 stars 5 4.4 out of 5 stars 5 5.0 out of 5 stars 1 5.0 out of 5 stars 1 Size AWG 6 6 8 10 12 14 Weight per 1,000 ft 303 lbs 478 lbs 222 lbs 138 lbs 129 lbs 70 lbs Outside Diameter 770X338 1223X361 678X302 727X215 626X183 423X168 Conductors 2 3 2 2 3 2 Number of Strands 7 7 7 1 1 1 Jacket PVC PVC PVC PVC PVC PVC Insulation and Jacket Thickness 35 mils 35 mils 35 mils 24 mils 19 mils 19 mils Jacket Thickness 45 mils 45 mils 45 mils 30 mils 30 mils 30 mils Ground Size 10 10 8 10 12 14 Volts 600 V 600 V 600 V 600 V 600 V 600 V
